Step Up Transformers Model

600 ~~1000~~

You Save 40% (Inclusive of all taxes)

Availibility: In Stock

Components Required:

Iron Core (Laminated or solid core for the transformer)
Primary Coil (Winding with more turns for step-down mode and fewer turns for step-up mode)
Secondary Coil (Winding with fewer turns for step-down mode and more turns for step-up mode)
AC Power Supply (Variable voltage input source)
AC Voltmeter (for measuring the input and output voltages)
Load (e.g., small bulb, LED, or resistive load)
Switches (for selecting between step-down and step-up modes)
Connecting Wires
Insulating Tape (for securing the windings)
Baseboard (to mount components)

Qty

Description

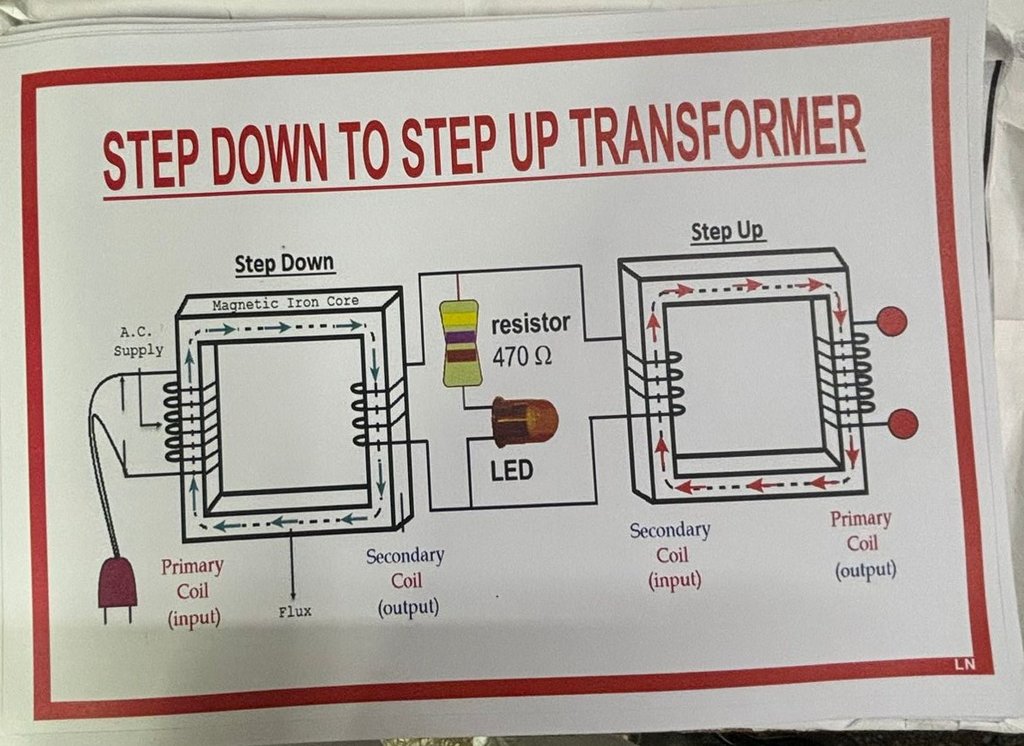

This project focuses on constructing a versatile transformer that can operate in both step-up and step-down modes. It provides students with hands-on experience in understanding the dual functionality of transformers, which are crucial components in electrical engineering. The transformer is built using two coils wound around a common iron core. By utilizing switches, the primary and secondary coils can interchange roles, allowing the transformer to either step down or step up the input voltage.

Step-Down Mode:

In this mode, the primary coil has more turns, and the secondary coil has fewer turns. This configuration lowers the output voltage compared to the input voltage.

Step-Up Mode:

In this mode, the primary coil has fewer turns, and the secondary coil has more turns. This configuration raises the output voltage compared to the input voltage.

The project emphasizes how a single transformer can be used for different applications by simply reversing the connections, demonstrating the flexibility of transformers in electrical systems.

Applications:

Demonstrating reversible voltage transformation within a single transformer
Exploring the dual functionality of transformers in various electrical circuits
Serving as an educational tool for understanding both step-down and step-up voltage processes
Practical use in power supplies, voltage regulation systems, and other applications requiring voltage transformation
