Hydraulic Brake

In the workshop, where creativity transforms ideas into tangible inventions, there lies an intriguing device—a homemade hydraulic brake system, crafted with care and innovative spirit. This device, although simple in appearance, represents a fundamental application of hydraulic principles that are crucial in various engineering fields.

The Tale of the Hydraulic Brake System

Once upon a time in a bustling workshop, filled with the tools of invention, an ingenious creator set out to demonstrate the power of fluids under pressure. At the heart of this system is a large wheel, colorfully painted in blue with red and yellow accents, symbolizing the vibrant dynamics of mechanical forces at play.

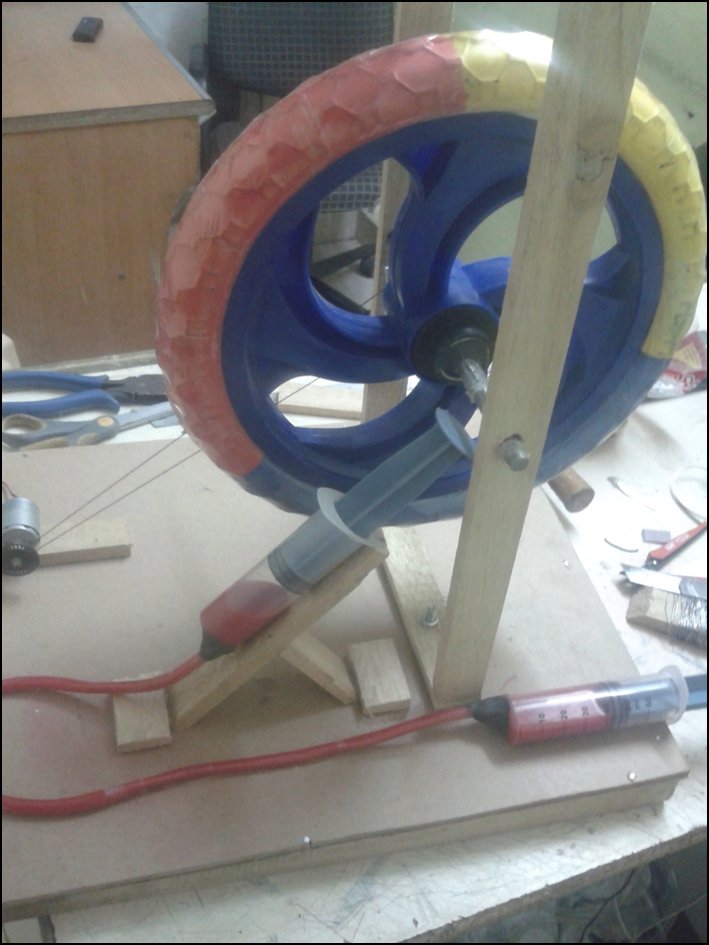

The wheel is mounted vertically on a sturdy wooden frame, its axle secured and allowing smooth rotation. Affixed to this axle is a syringe, a clever use of everyday items to create a hydraulic actuator. This syringe, connected by a red tube filled with fluid, is the key to this narrative.

When pressure is applied to another syringe (not visible in this scene but part of this interconnected tale), the hydraulic fluid travels through the tube with nowhere to expand but into the cylinder of the mounted syringe. As the fluid moves, it pushes the plunger, exerting a force against the wheel. This force, applied at a tangent to the wheel’s rotation, acts to slow it down, mimicking the way a brake would work on a bicycle or car.

This setup not only visualizes the transfer of energy from pressure to mechanical force but also serves as a practical demonstration of how brakes harness the laws of physics to ensure safety and control in moving vehicles. The choice of materials—wood, plastic syringes, and simple tubing—highlights the accessibility of physics and engineering concepts, bridging the gap between theory and real-world application.

In this tale of innovation, each component of the hydraulic brake plays a crucial role, together weaving a story of learning, exploration, and the unending quest for knowledge in the fascinating world of mechanics.
