Electromagnet brake system

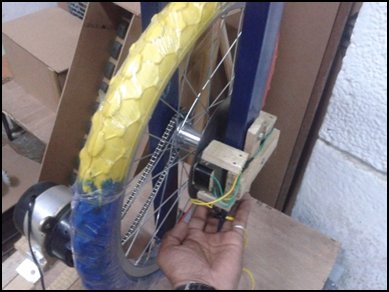

The image shows an experimental setup for an electromagnetic brake system. Key features include:

• Wheel: A large, multicolored wheel (with sections painted in yellow, blue, and red) is mounted vertically. This wheel is likely part of a braking test system.
• Motor and Chain Drive: A small motor is attached to the wheel through a chain drive mechanism. This setup suggests that the wheel can be powered and rotated to simulate movement.
• Electromagnet: Near the motor, there seems to be an electromagnet or braking mechanism connected to the wheel. The purpose of this is likely to apply controlled resistance or braking force to stop or slow down the wheel.
• Foot Pedal: A wired foot pedal is connected to the system, indicating that the braking system can be operated manually to apply or release the electromagnetic brake.

In summary, the image depicts a prototype of an electromagnetic brake system where the wheel can be rotated and stopped using a motor and a pedal-controlled electromagnetic brake. This setup is likely used for testing and refining the braking performance.
